SPECIFICATIONS

Brand Name: UGREEN

Choice: yes

High-concerned chemical: none

Model Number: CM630-15390A

Origin: Mainland China

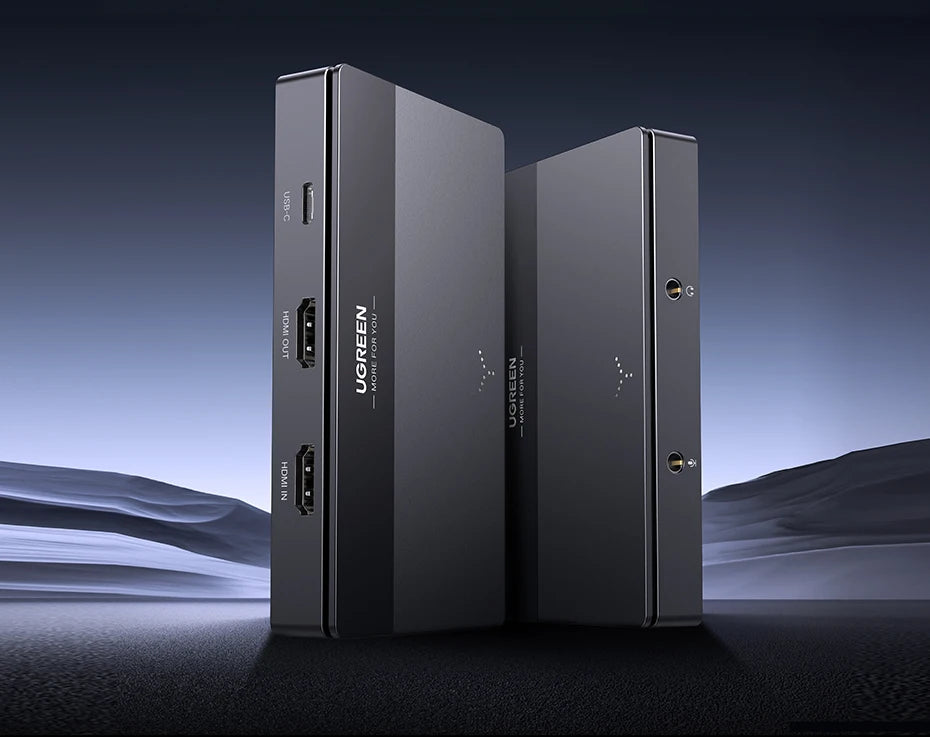

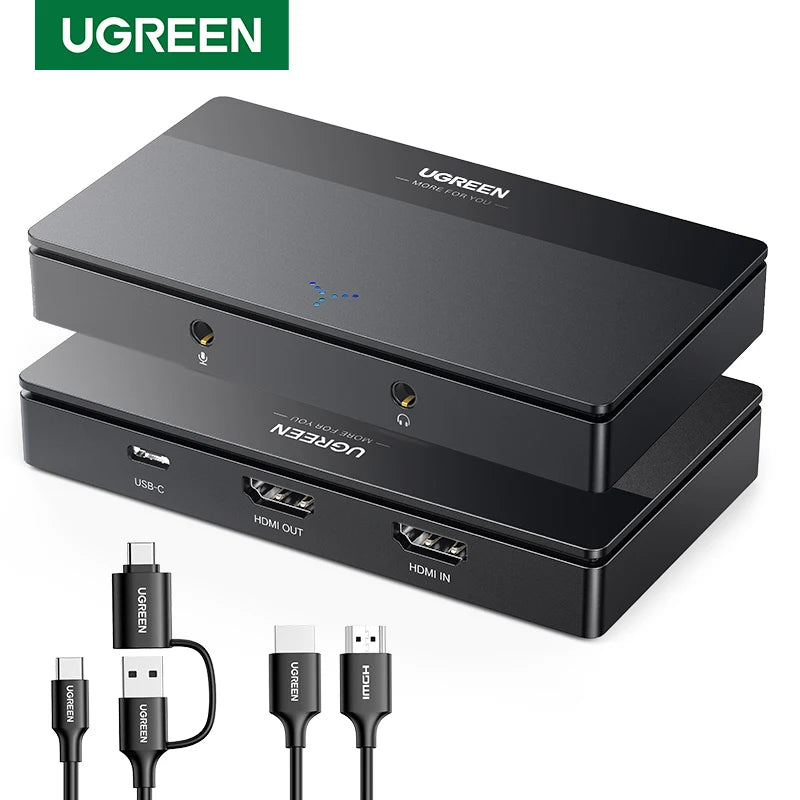

This Ugreen HDMI capture card lets you record or stream gameplay from a console, handheld dock or camera through your PC. It takes a 4K60 HDMI signal with a 4K60 loop-out to your monitor and records at up to 1080p60 over USB 3.0.

Why it earns desk space

• Lag-free play: the 4K60 HDMI loop-out sends the picture straight to your monitor or TV while the PC captures a copy.
• 1080p60 capture: smooth, full HD recordings and streams that most platforms accept.
• USB 3.0 connection: plenty of bandwidth for the video feed, with USB and USB-C hookup listed by the maker.
• Mic input for commentary: plug in a microphone to talk over your gameplay.
• Works with common software: the maker lists OBS and PotPlayer for recording and live streaming.

Specs

Good to know

• It records at up to 1080p60. The 4K60 figure is the input and passthrough, not the recording resolution.
• Use a USB 3.0 port on your PC for a stable feed.
• Some consoles block capture of copy-protected (HDCP) content such as streaming apps. Gameplay capture usually works once HDCP is turned off in the console settings.
• HDMI cables are not listed as included, so plan on using your own.

FAQ

Does it record in 4K?

No. It accepts 4K60 and passes it through to your display, but recordings are up to 1080p60.

Do I need drivers?

The maker lists support for OBS and PotPlayer. Most USB capture cards like this appear as a video source in those apps without extra drivers.

Can I play on my monitor while recording?

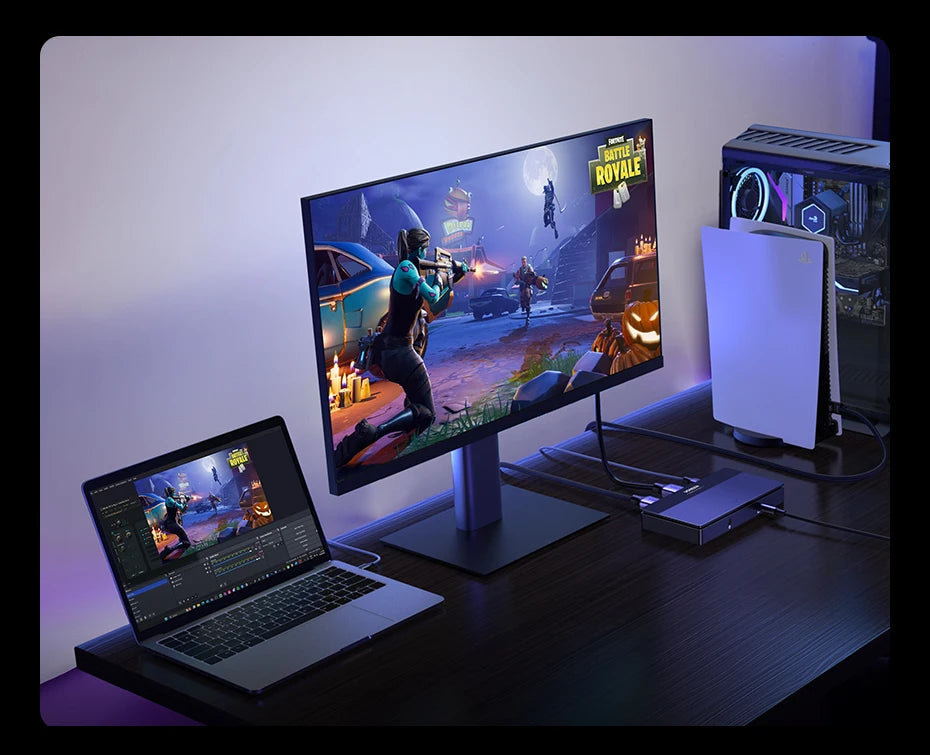

Yes. Connect your monitor to the HDMI loop-out and play from that screen while the PC records.

Can I stream with it?

Yes. Add it as a video source in your streaming software and go live from there.
